TR-One Universal Wheel Deck/Plate - requires TR80-NWMA

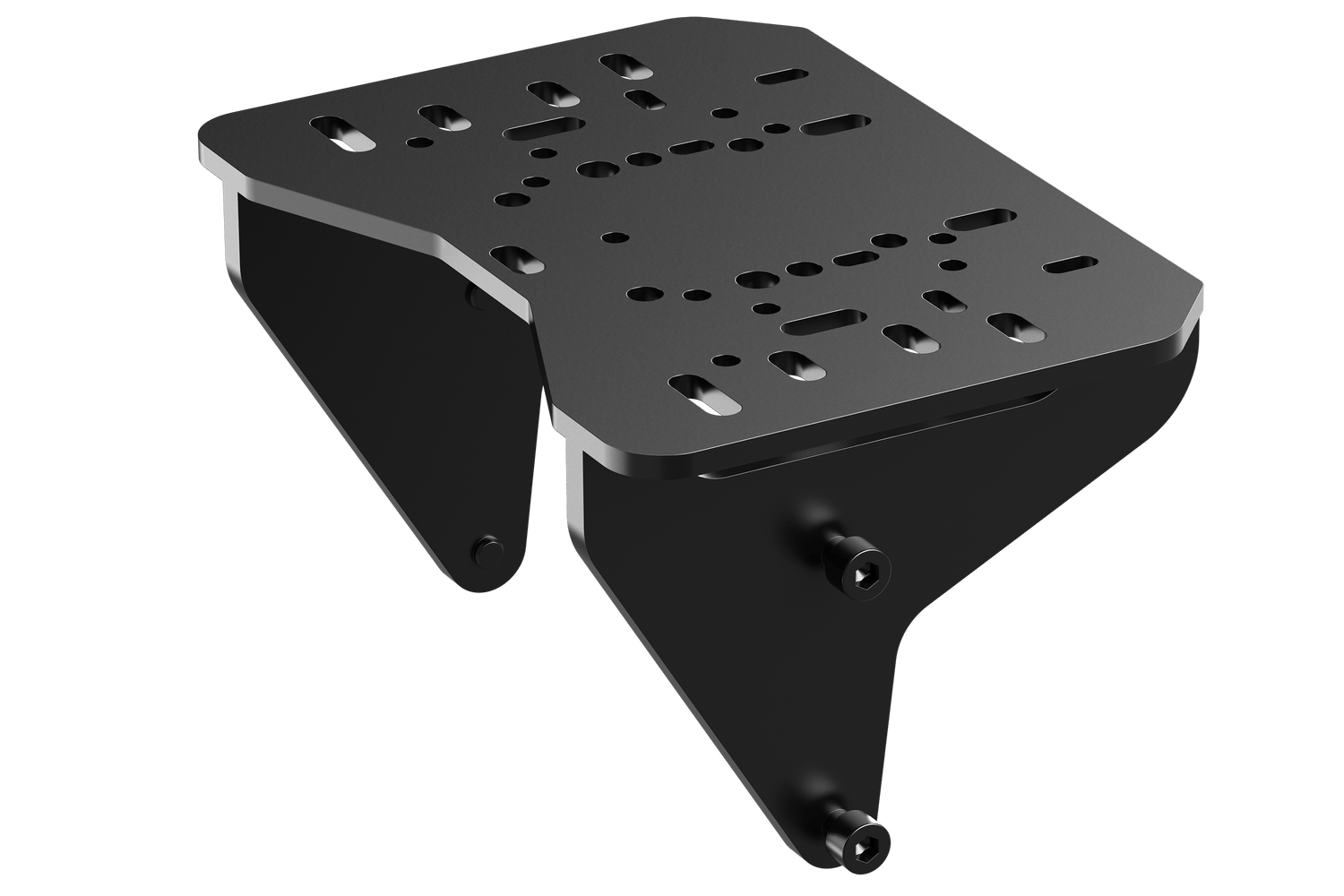

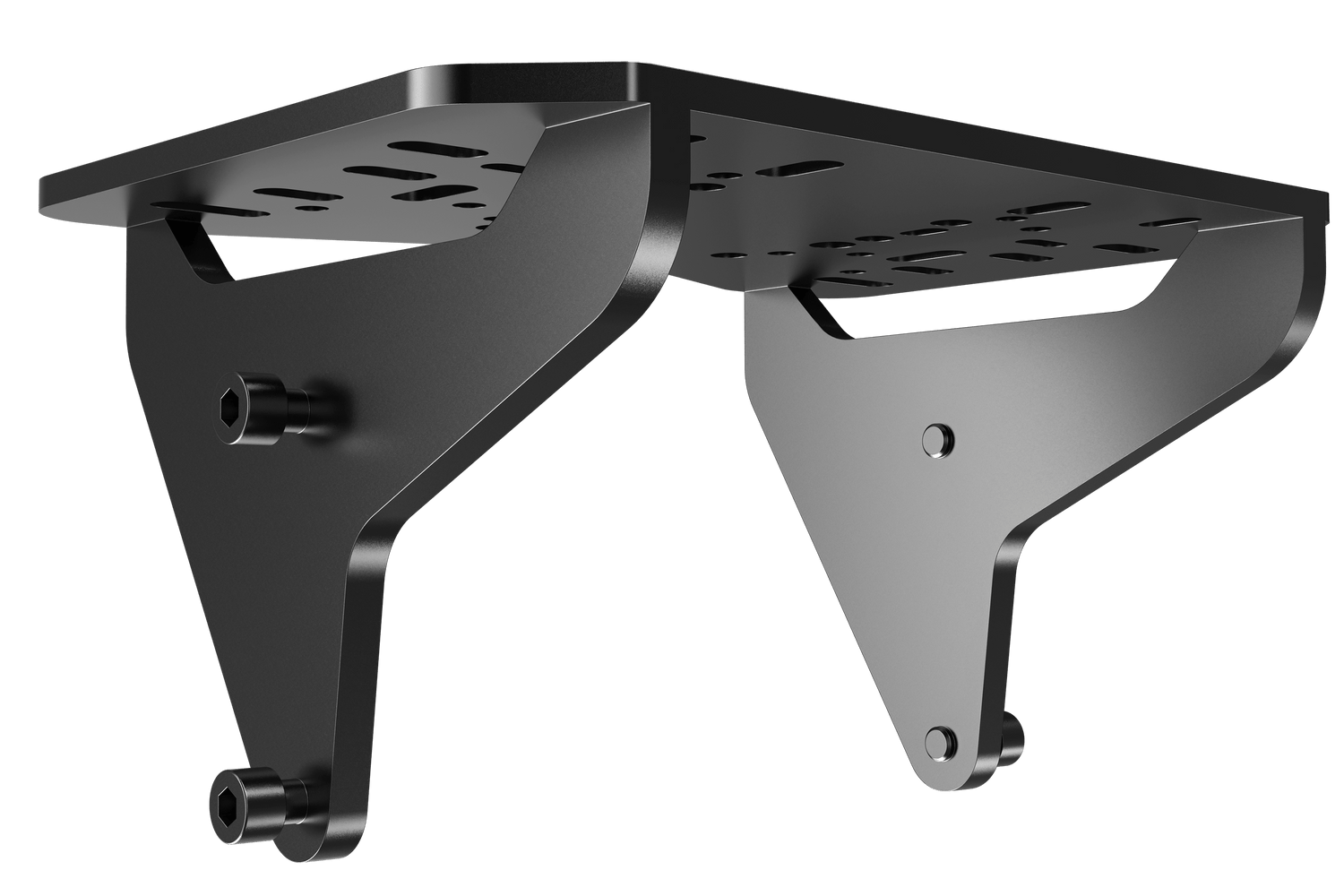

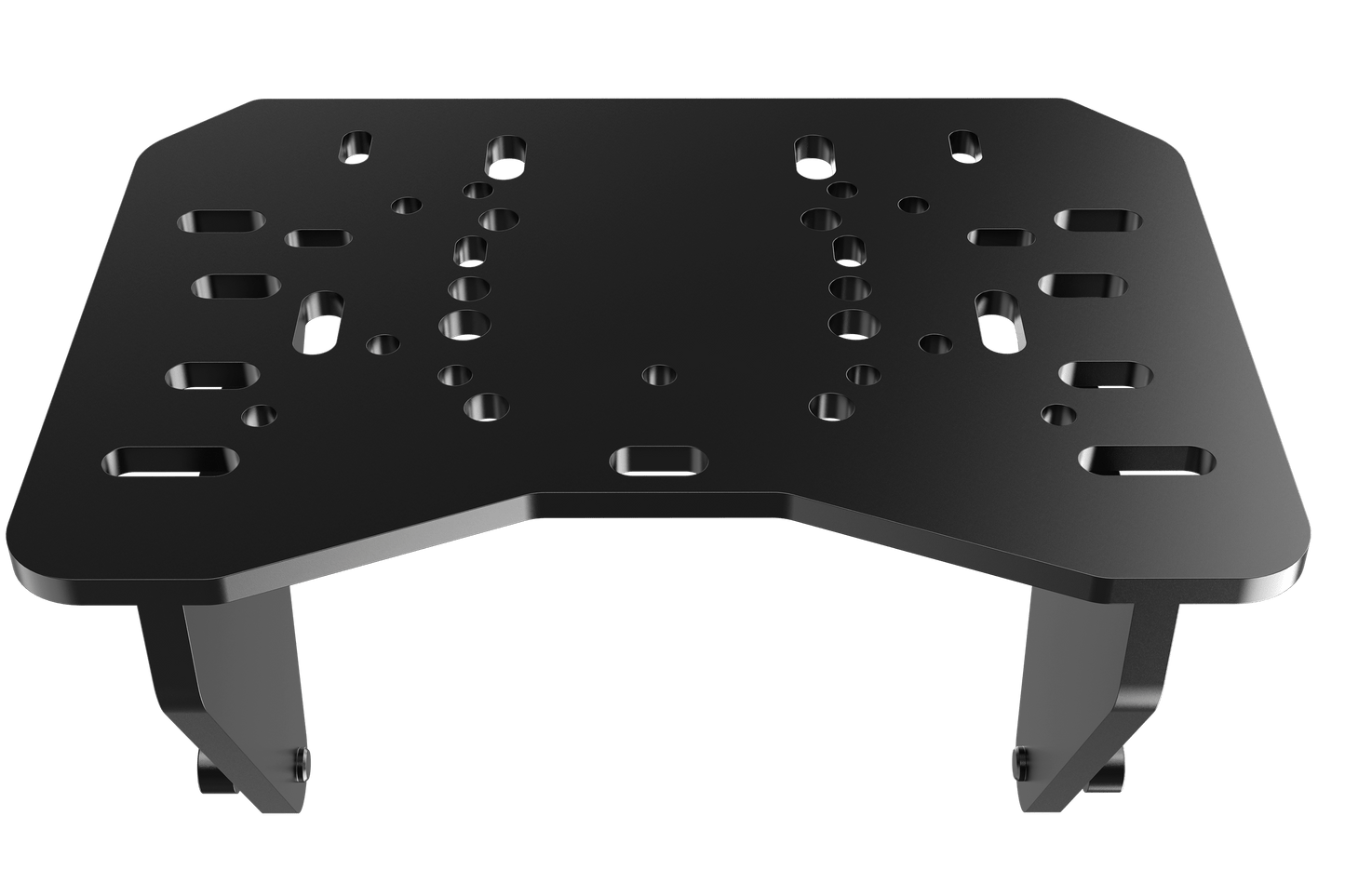

TR-One Universal Wheel Deck Plate

About the TR One Wheel Mounting System

The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheel base you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.

The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Red Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backwards fine-tuning - to get a perfect position!

Features:

Note: This part also requires Trak Racer TR8020 Fully Adjustable Direct Fit Wheel Mount (Part No.: TR80-NWMA)

• This is an add-on plate that requires side supports (if you don't already have them - Trak Racer Part No. TR80-NWMA
• Constructed from High-Grade Carbon Steel and powder-coated black
• Zero flex and no weak points
• Quick and easy adjustments when fitted with the Trak Racer Side Mounts (not included)
• All the necessary mounting hardware is included for a quick and easy installation

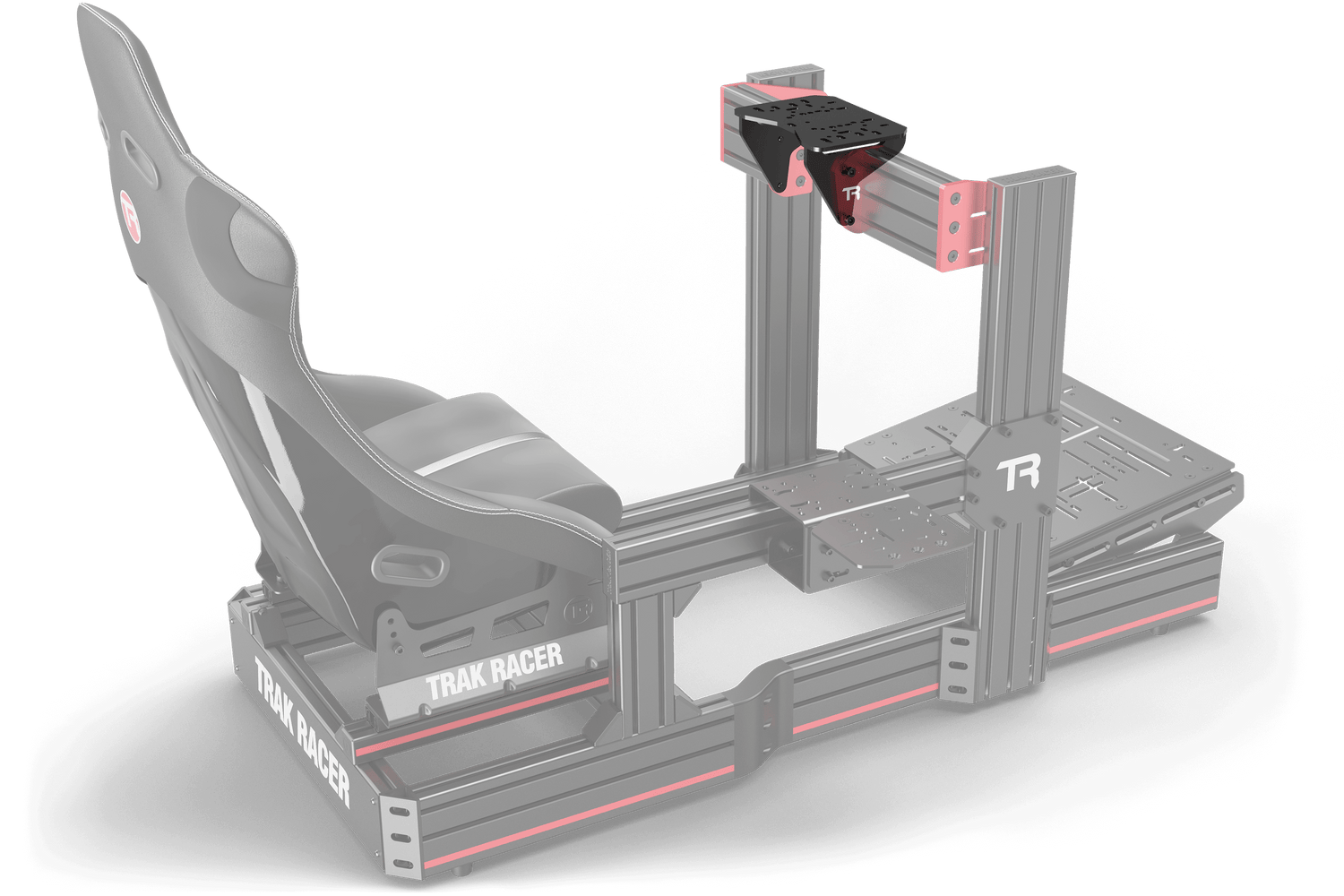

When fitted with the Side Supports (TR80-NWMA), this part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds and has a total width of 580mm

Compatible Wheel Bases:

• Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II
• Logitech G25, G27, G29, G920, G923
• Fanatec Elite, Clubsport, CSL Elite
• Fanatec Podium DD1/DD2, CSL DD and Fanatec GT DD Pro (base or side mounted)
• AccuForce V1/V2
• SIMAGIC M10
• Moza R9, R16, R21 DD Wheel Bases

  Other Wheel Bases - may require mounting bracket (Trak Racer Direct Drive Mount recommended)
• MiGe 130ST(small and big) - additional mount required
• Bodnar 53 series - additional mount required
• Simucube SC1 / SC2 Sport, Pro, Ultimate - additional mount required
• SIMAGIC ALPHA / ALPHA Mini - additional mount required

  Also, Flight/Heavy Equipment
• Logitech Flight Yoke System (by clamp)
• Logitech Flight Switch/Multi/Instrument Panels
• Logitech Heavy Equipment
• Turtle Beach Velocity One Flight

Contact us if your wheel is not listed

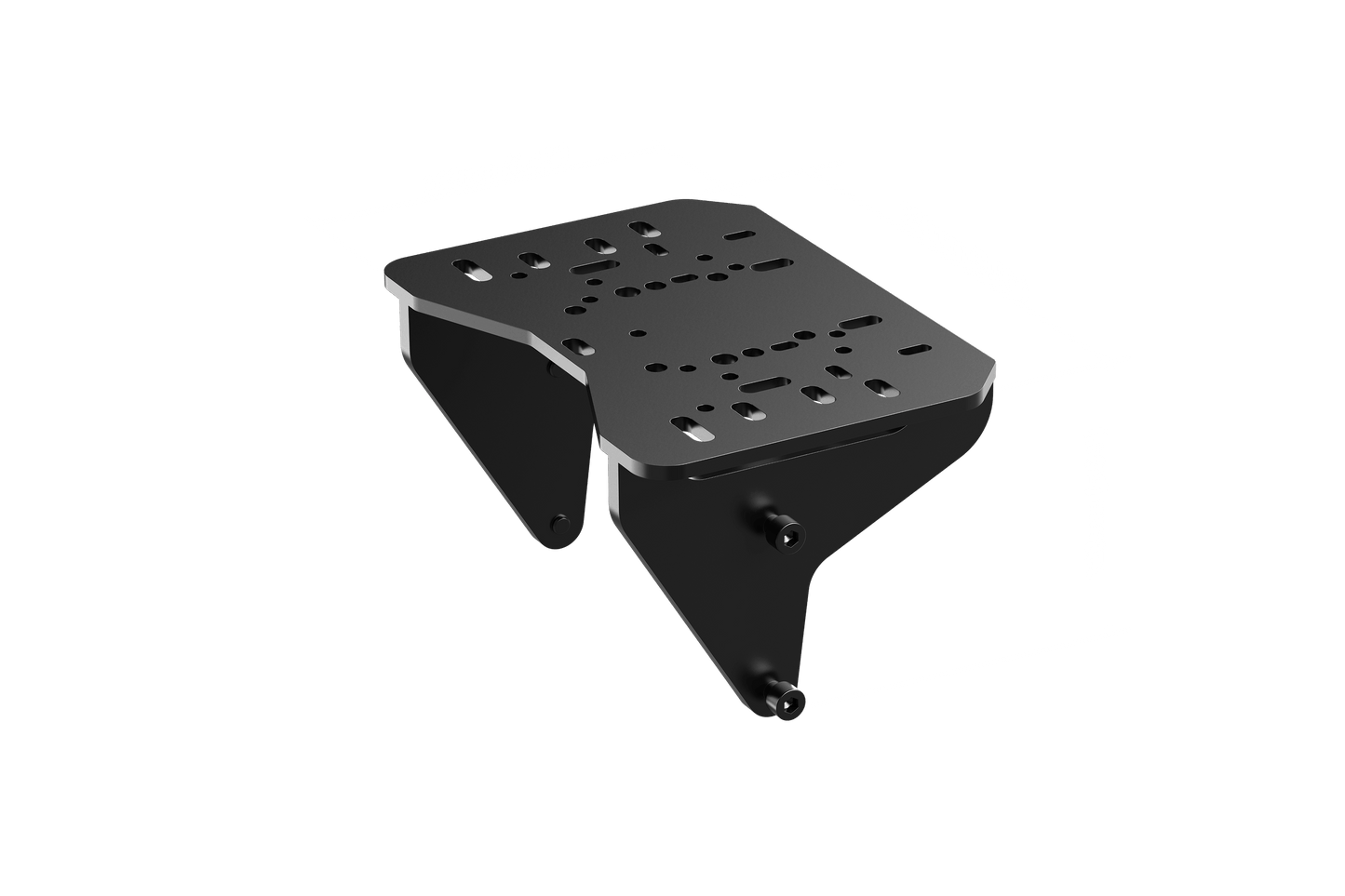

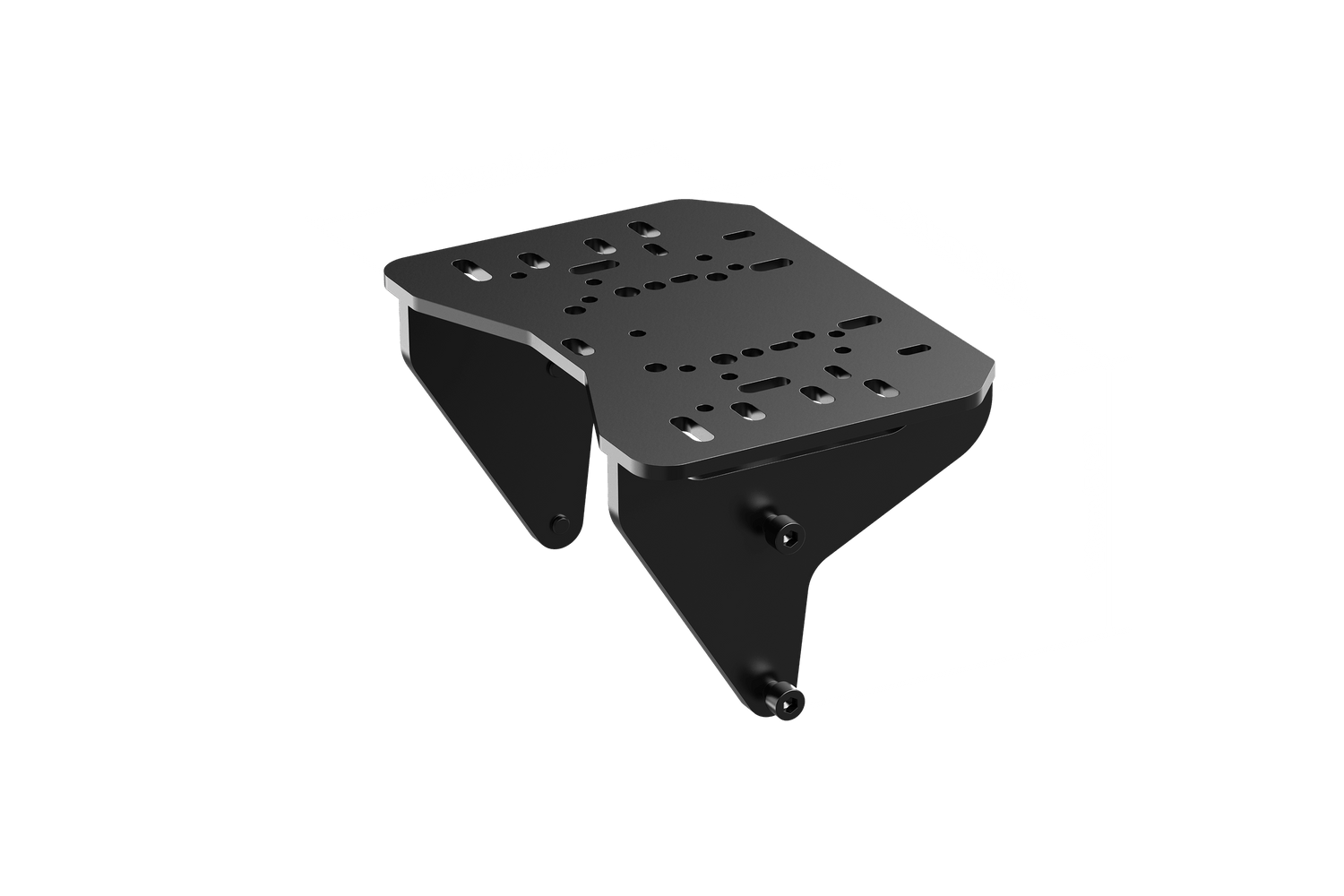

Specifications:

• Plate thickness: 6mm
• Material: High-Grade Carbon Steel
• Plate Width (without TR80-NWMA): 230mm
• Plate Width (with TR80-NWMA): 580mm

5 Year Warranty
